LR-65T

VERTICAL LASHING BAR

LR-65 VERTICAL LASHING BAR



DESCRIPTION

LR-65T Vertical lashing rod

The CONTECH® vertical lashing rod LR-65T is used as a vertical lashing bar to secure containers on a vessel. The end of the LR-65T gets secured in the side holes of the corner castings and extended with a turnbuckle with jaw S-32B to the desired length until the deck fitting. The lashing bars are available in different dimensions, most common are: 1500, 1680 or 4400mm.

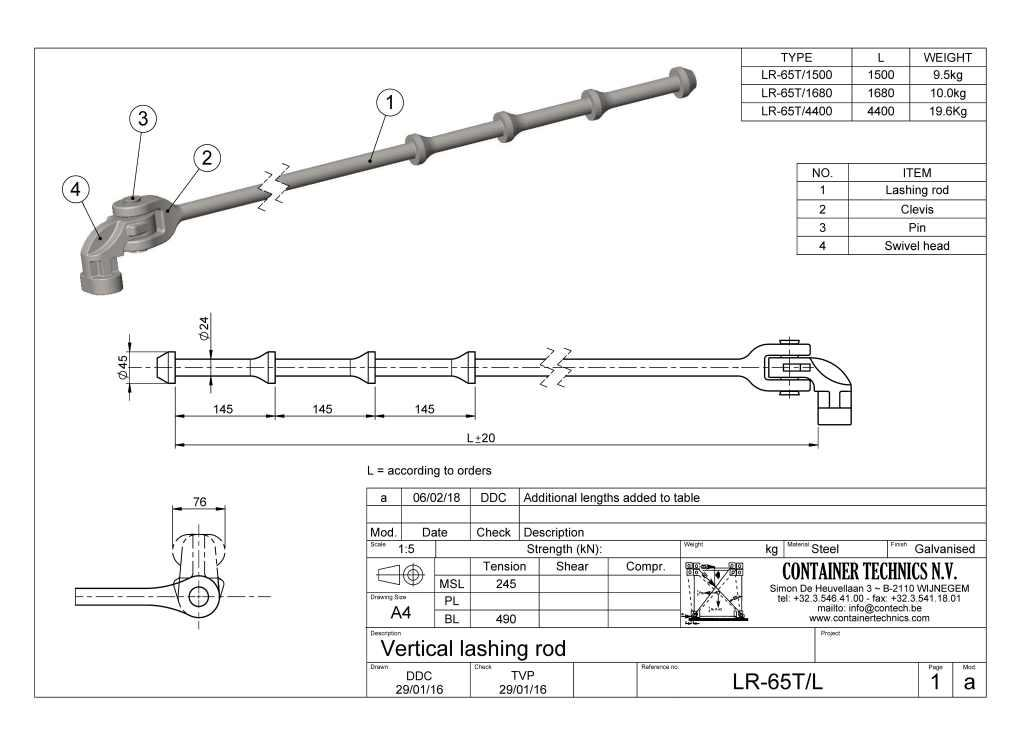

DRAWING

LR-65 VERTICAL LASHING BAR

EQUIVALENT WITH OTHER PRODUCERS

C7-6-1A/, BR-31V, FLX-F-50, R-KV/, LB-44-V, LRV-1
