Double U-frame / dovetail foundation / welded deck fitting

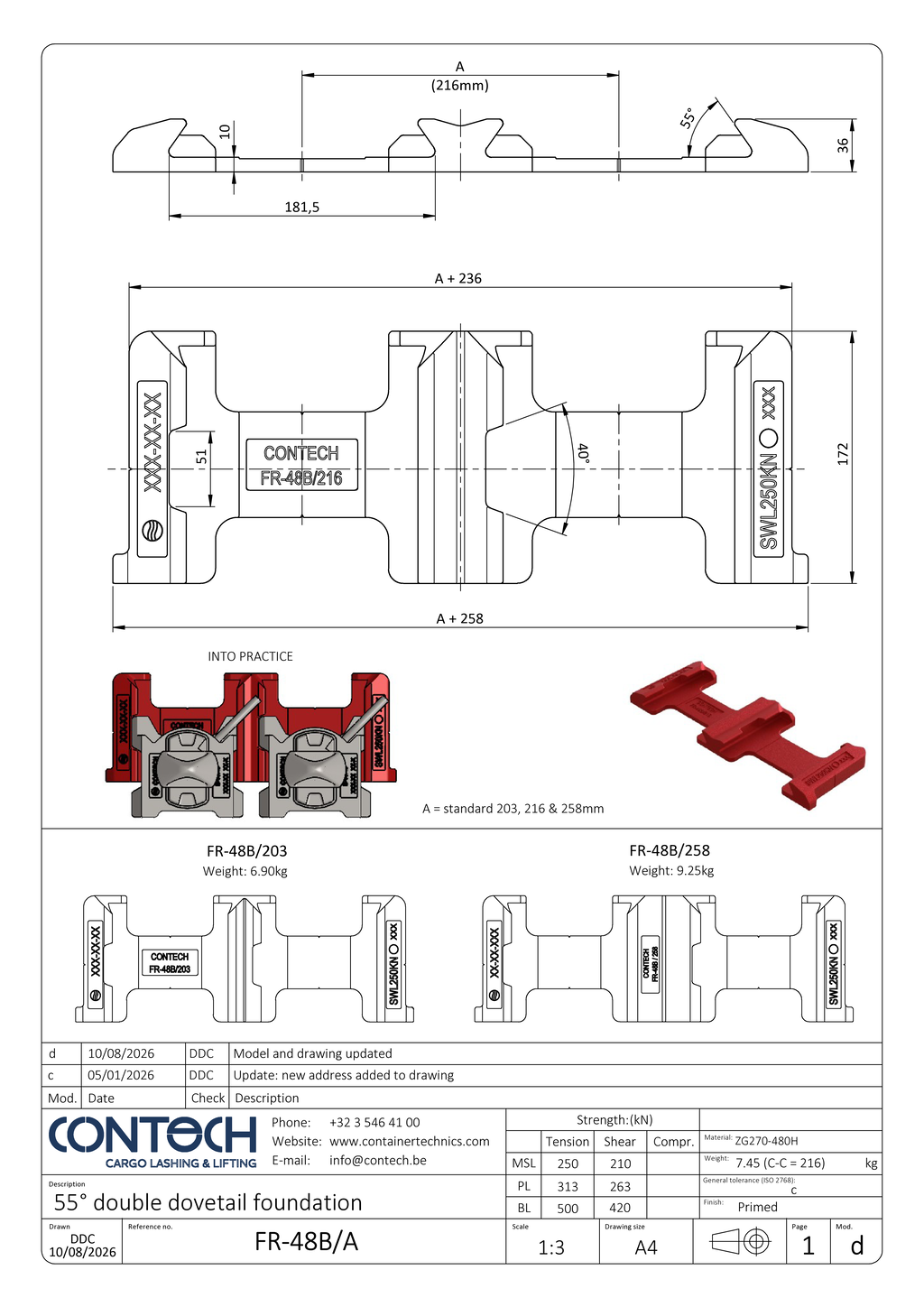

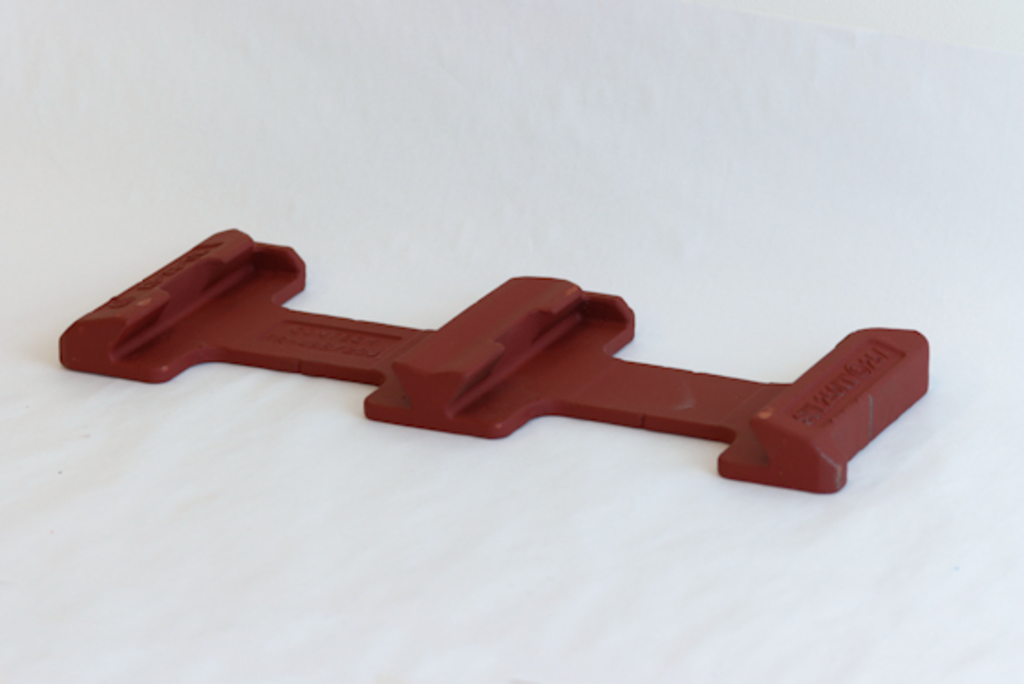

The CONTECH® FR-48B double U-frame foundation is welded onto the vessel deck and features a 55° angle. It is designed for use with 55° bottom twistlocks such as the CONTECH® B-55A, B-55L, B-56 and B-57 to secure container corner castings safely and efficiently.
Available with centre-to-centre widths of 203 mm, 216 mm or 258 mm, the FR-48B provides a strong and reliable foundation for container securing systems in marine applications.
Features
APT-2A-L, APT-2A-S, D5B, DF-2L, DP 12, FE-28, 1-01-21-55
